three.js with React
Experiments with STL vs glTF

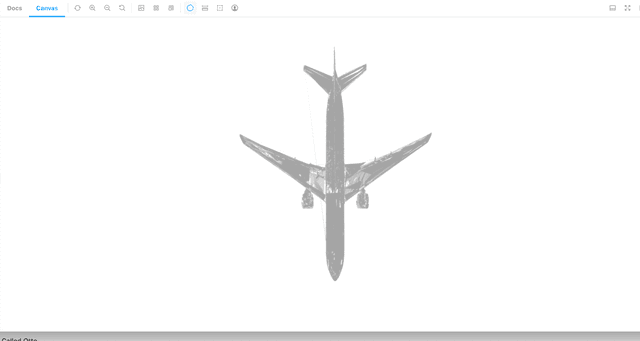

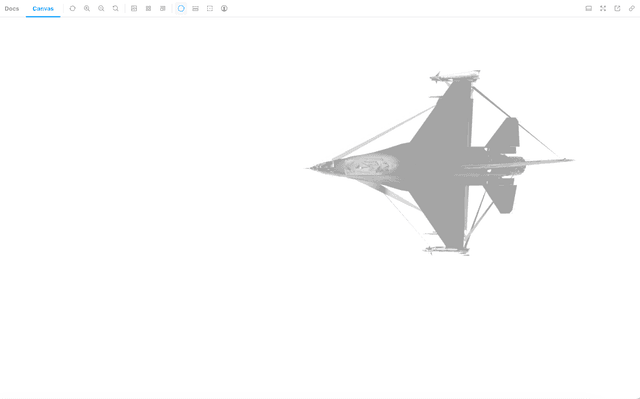

I wanted to create a 3D viewer using an .stl file but the rendering was very
choppy with 5-6 frames per second with every drag/pan or zoom action. The output
was choppy [1] and [2], FPS would decrease even more when we use
meshStandardMaterial with a TextureLoader.
const colorMap = useLoader(TextureLoader, '[...].jpg');
const geom = useLoader(STLLoader, '[...].stl');
<mesh
{...props}
ref={ref}>
<meshStandardMaterial map={colorMap} />
<primitive object={geom} attach="geometry" />
</mesh>
Why glTF
glTF is a 3D file format maintained by the Khronos Group. It is an all-purpose transmission format, but it has been adopted by Google as the format of choice for Augmented Reality (AR) on Android’s Scene Viewer. GLB is a binary container format of glTF. It bundles all the textures and mesh data into a single file.
glTF works well for web-based AR. In fact, web giants like Facebook and Google have adopted the format for their AR services due to its efficient design and sheer speed.
glTF was designed to maximize web browser compatibility – something that 3D file formats like FBX lack. So it’s become a go-to for businesses blending 3D models and the World Wide Web.
- More info here: https://www.modelry.ai/blog/guide-to-3d-file-formats
After Refactor
const ref = useRef<Mesh>(null!);
const { scene } = useGLTF(url);
// ...
useLayoutEffect(() => {
scene?.traverse(obj => {
if ((obj as Mesh).isMesh) {
obj.castShadow = true;
obj.receiveShadow = true;
}
});
}, [scene, hotspotList]);
// ...
return (<primitive ref={ref} castShadow receiveShadow object={scene} />)
Resources for glTF
You can download glTF and glb from:
- https://sketchfab.com/3d-models
- https://github.com/KhronosGroup/glTF-Sample-Models
- https://market.pmnd.rs/
- https://polyhaven.com/ (For all kinds of Textures and Backgrounds)
